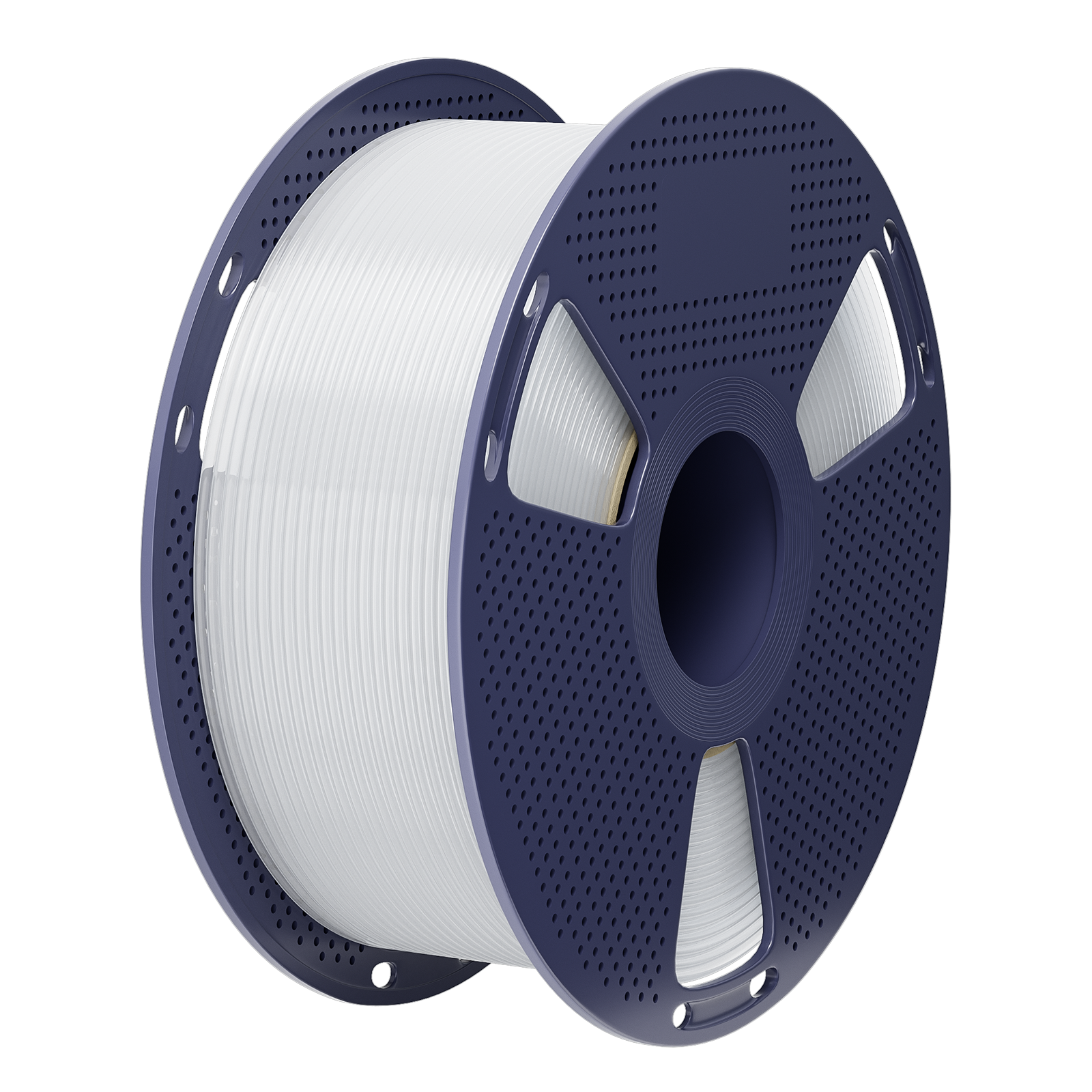

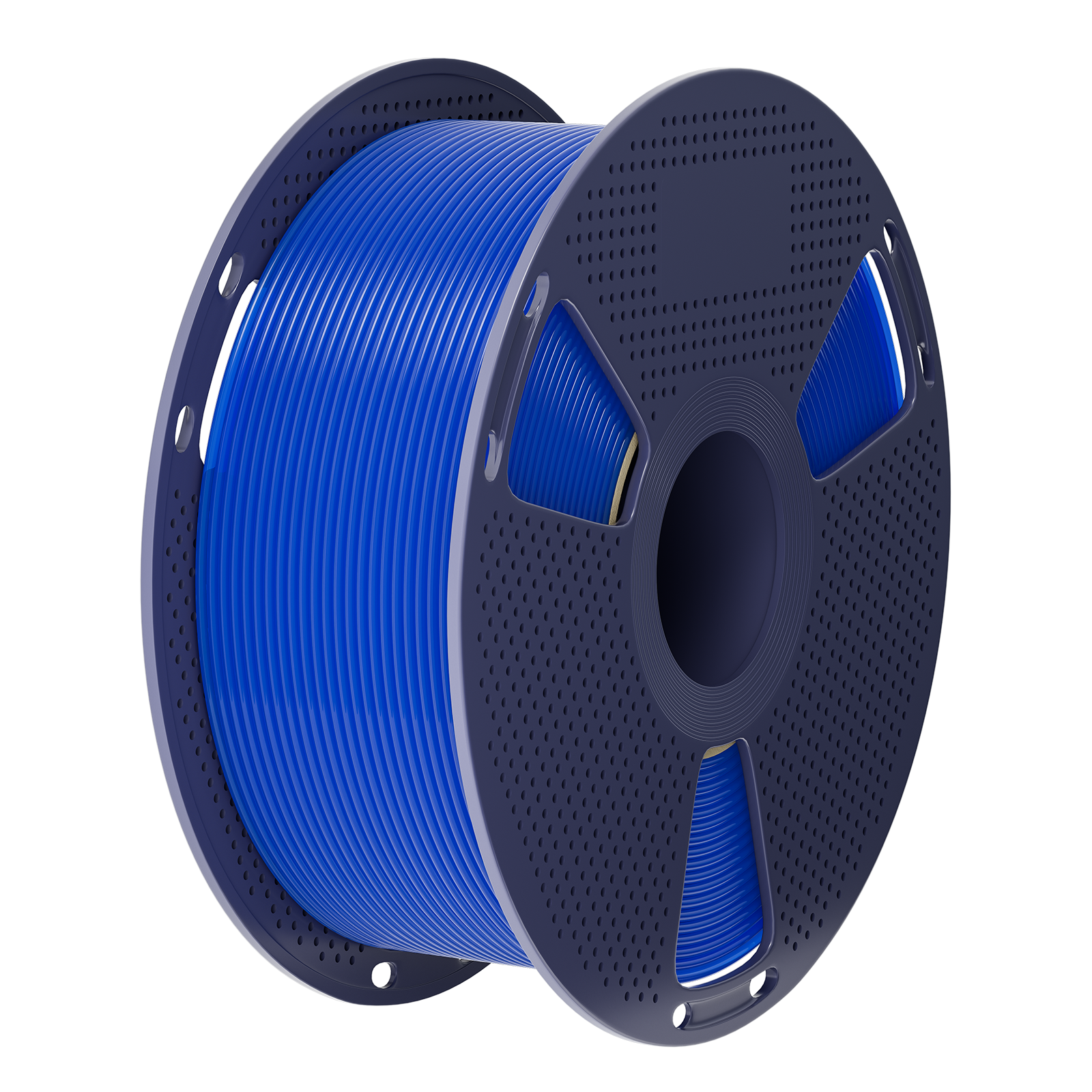

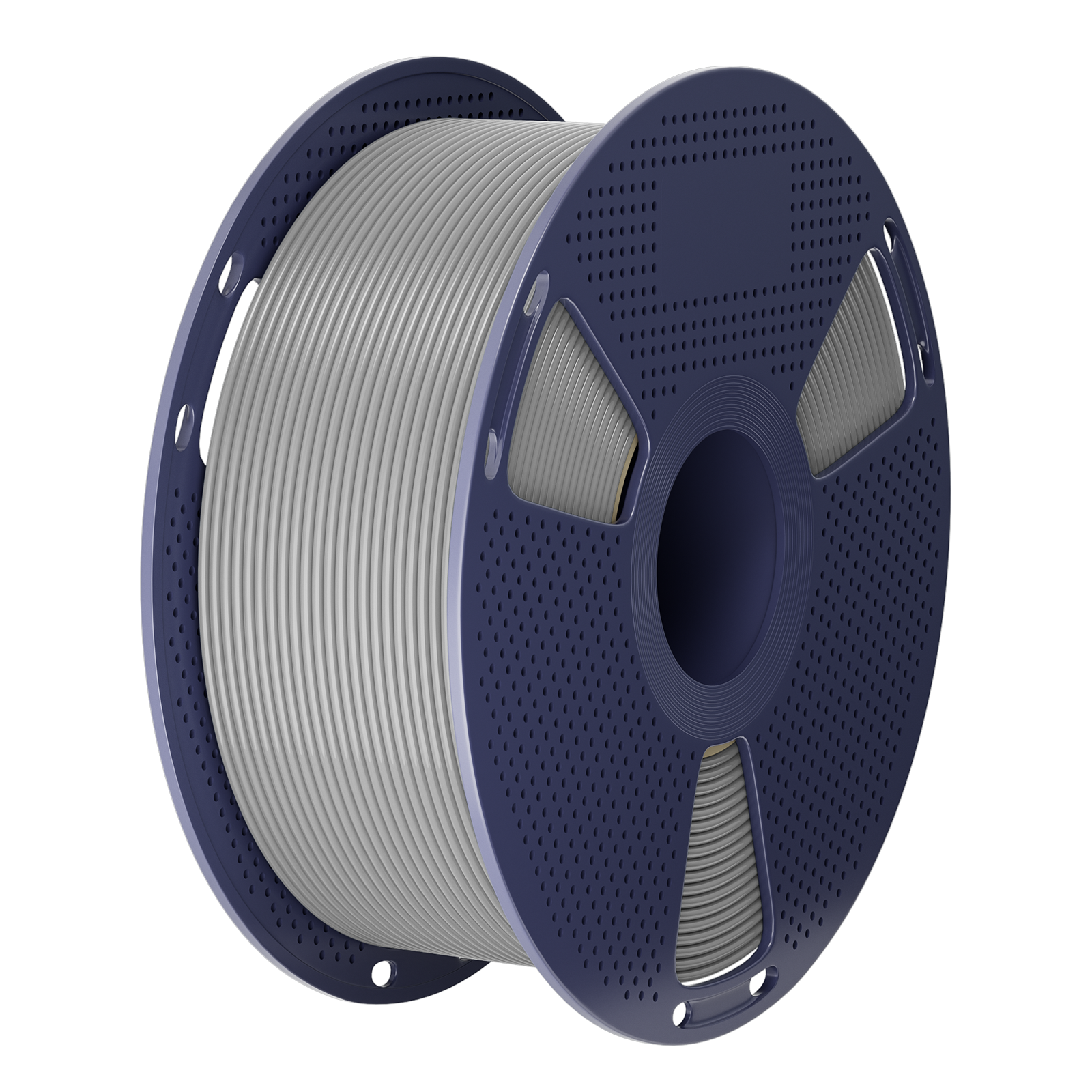

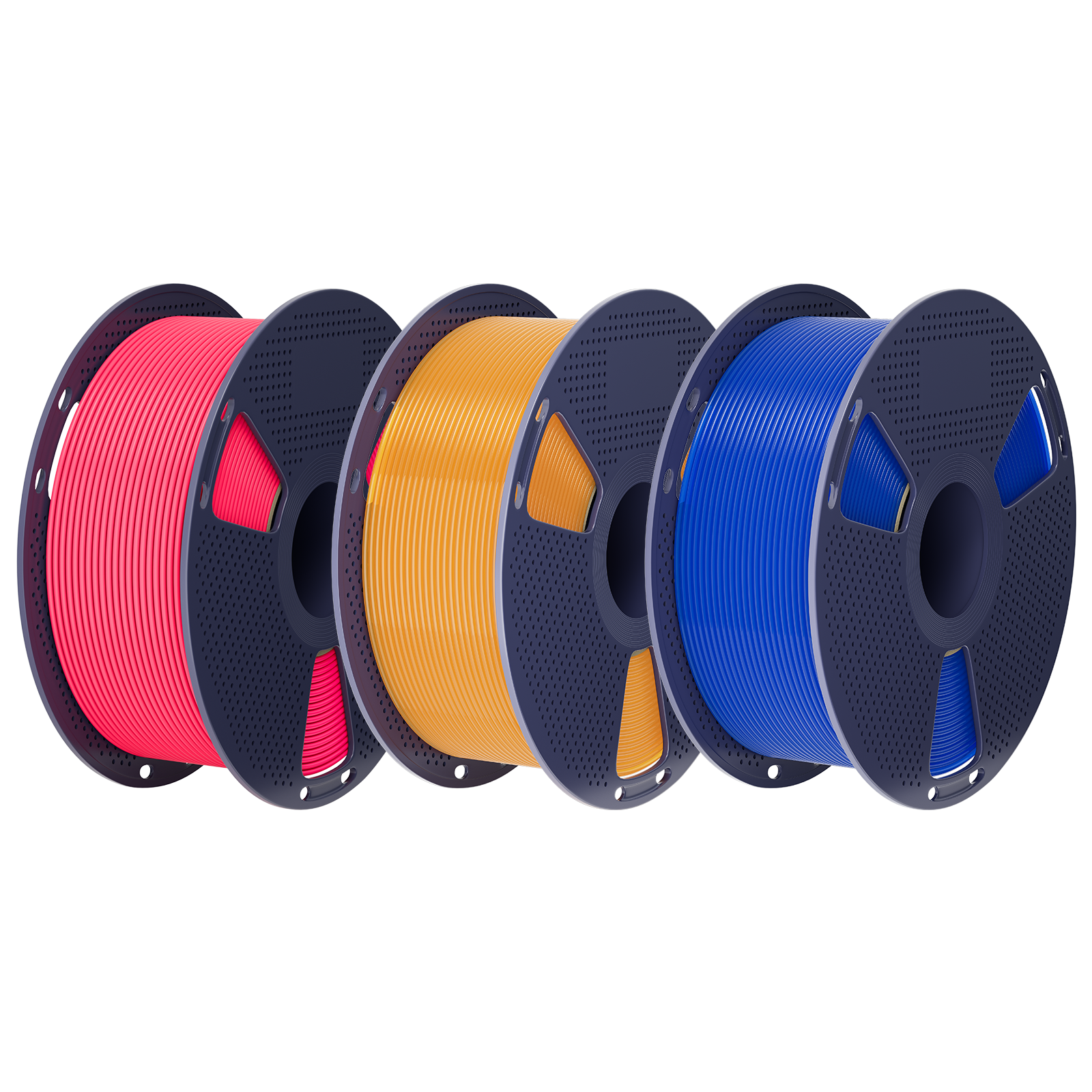

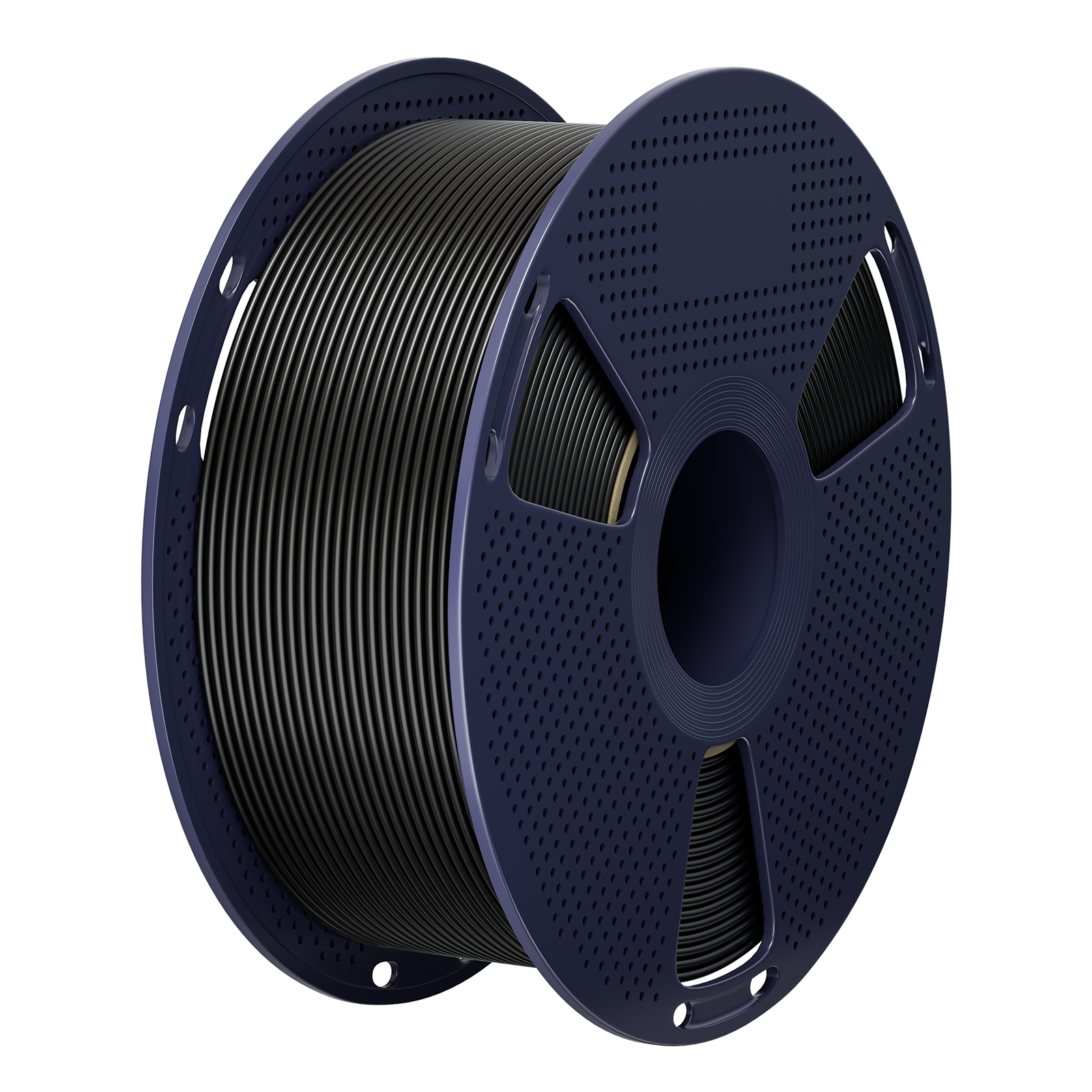

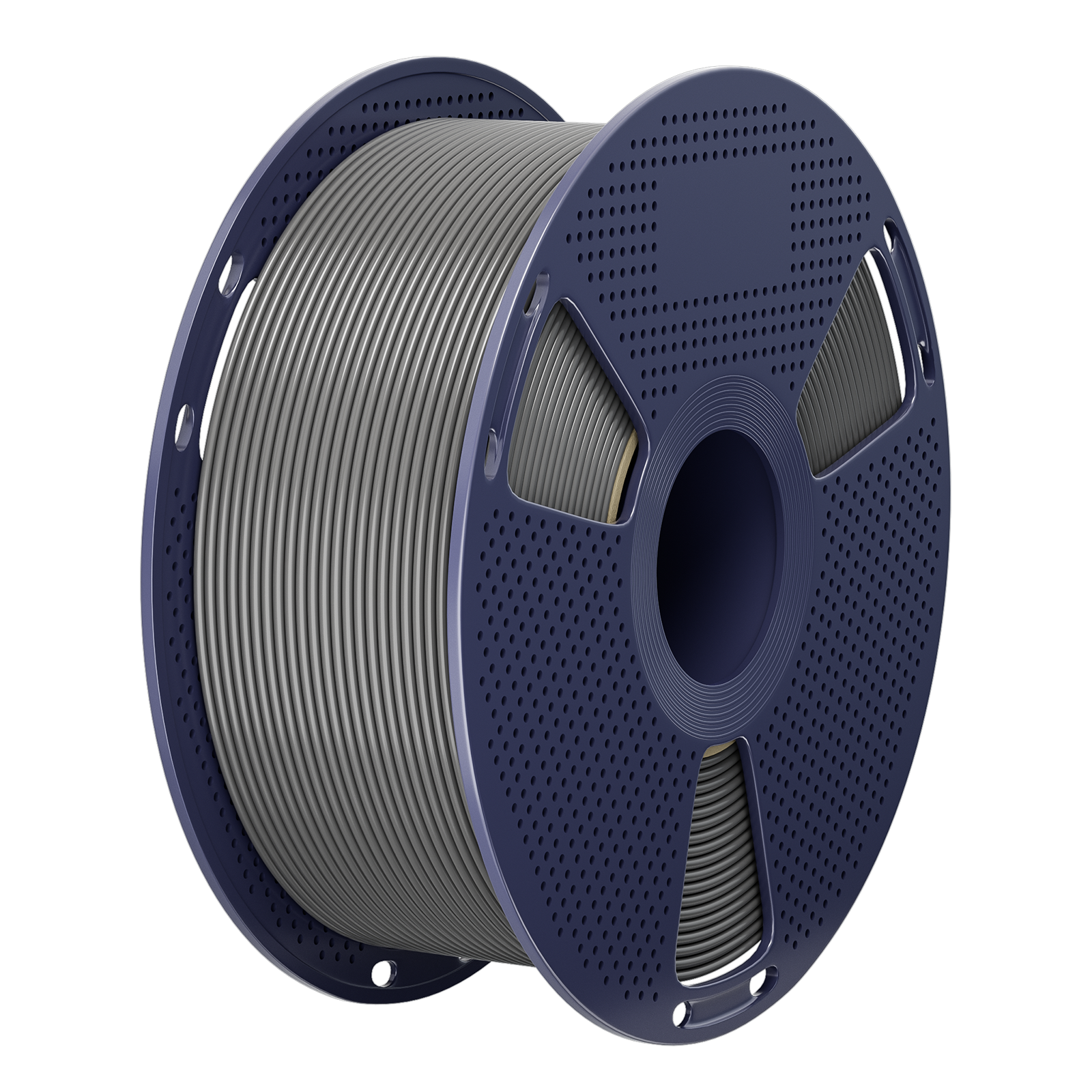

ABS 3D Printing Filament (1.75mm, 1KG Spool) delivers exceptional mechanical strength, heat resistance, unbeatable impact tolerance and durability – designed for functional prototypes, automotive parts, home appliance spare parts and industrial applications where failure is not an option. Trusted by professionals for its rugged reliability.
Why ABS Filament?
✔ Superior Impact Resistance, Industrial-Grade Performance – 95°C Heat Resistance, survives engine bays, hot enclosures & summer heat. Designed to withstand stress and shocks, perfect for engineering and mechanical components. Stronger than standard ABS/PLA.
✔ Built for Tough Environments, Chemical & Moisture Resistant - Withstands drops, collisions & repetitive stress. Ideal for automotive fluids, outdoor & wet applications.
✔ Excellent Thermal Stability – Heat deflection temperature of 95°C and glass transition temperature up to 108.9°C, ensuring structural integrity in demanding conditions.
✔ Dimensional Accuracy – Mold shrinkage rate of just 0.4–0.9%, keeping your prints precise and true to design.
✔ Smooth Printability – Melt flow rate of 15g/10min, with optimized settings for fast and stable printing. Smooth layers, zero bubbles.
Wide Applications:
➤ Functional Engineering: Gear housings, motor mounts, drill jigs
➤ Automotive: Dashboard components, intake manifolds, fluid caps
➤ Industrial: Machinery fittings, high-temp tools, factory fixtures
➤ Consumer Goods: Tool handles, drone frames, outdoor enclosures
➤ Post-Processing: Acetone-vapor smoothing for glossy finishes
Key Features
- Superior Heat Resistance
- Industrial-Grade Toughness
- Unbeatable impact tolerance
- Chemical & Moisture Resistant
- Precision Engineered
Specifications
| ABS Properties | |
| Product Name | ABS (Acrylonitrile Butadiene Styrene) |
| Tensile Strength (X-Y) | 42 MPa (ISO527/2) |
| Young’s Modulus (X-Y) | 2270 MPa (ISO527/2) |
| Elongation at break (X-Y) | 7.8% (ISO527/2) |
| Flexural Strength (X-Y) | 55 MPa (ISO178) |
| Flexural Modulus (X-Y) | 1829 MPa (ISO178) |
| (X-Y) IZOD Impact Notched | 25 KJ/m² (ISO180) |
| Shore hardness | 85 HA/HD (ISO868) |
| Heat Deflection Thermal (HDT) | 95℃ (ISO75) |
| Glass Transition(Tg) | 108.9℃ (ISO11357-3) |
| Melting Point | 132℃ (ISO11357-3) |
| @5%Decomposition Temp. | ≥415℃ (ISO11358) |
| Vicat Softening Temp. | 86℃ (ISO306) |
| Mold Shrinkage | 0.4-0.9% (ISO294) |
| Coefficient of Thermal Exp. | 60.7 ㎛ (m·℃) |
| Melt Flow Rate | 15 g/10min (ISO1133) |
| Density | 1.02 g/cm³ (ISO1183) |
| Volume Resistivity | 6.75*10^14 ohm-cm (IEC60093) |
| Flammability | HB Class |
| Chemical Resistance | |
| Item | Class |
| Weak Acid (pH 3-6) | Excellent |
| Strong Acid (pH<3) | Average |
| Weak Bases (pH 8-10) | Excellent |
| Strong Bases (pH >10) | Excellent |
| Deionized Water | Excellent |
| Alcohol | Good |
| Ketone | Poor |
| Petroleum Fuels | Good |
| Ester | Average |
| Recommended Printing Parameters | ||
| Parameters | Range | |
| Nozzle Print Temp. | Nozzle Print Temp. | Speed |
| 250-260℃ | 50-100mm/s | |
| 260-280℃ | 100-200mm/s | |
| Print Platform Temp. | 80-100℃ | |
| Print Platform Material | Regular | |
| Print Platform Treatment | GLUE | |
| Cool Fan | Open | |
| Raft Distance | 0.4-0.6mm | |
| Retraction Distance | 0.8-1.2mm | |
| Retraction Speed | 30-40mm/s | |
| Room Temp. | Normal | |
| Support Material | PVA | |
| Drying Temp. | 50℃ | |

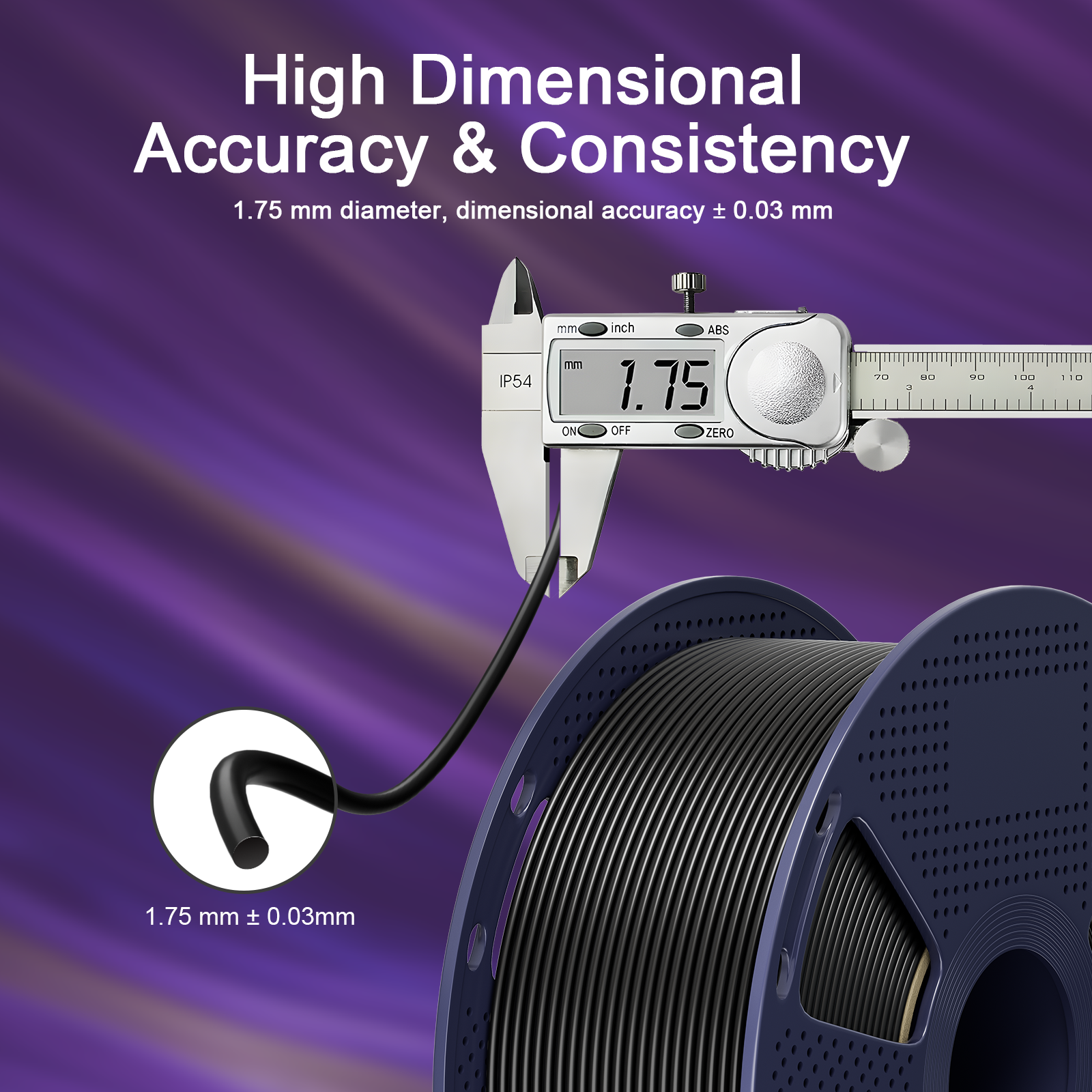

| Filament Diameter | 1.75±0.03mm | |
| Net weight | 1Kg/2.2lb | |
| Gross Weight | 1.38Kg/3.04lb | |

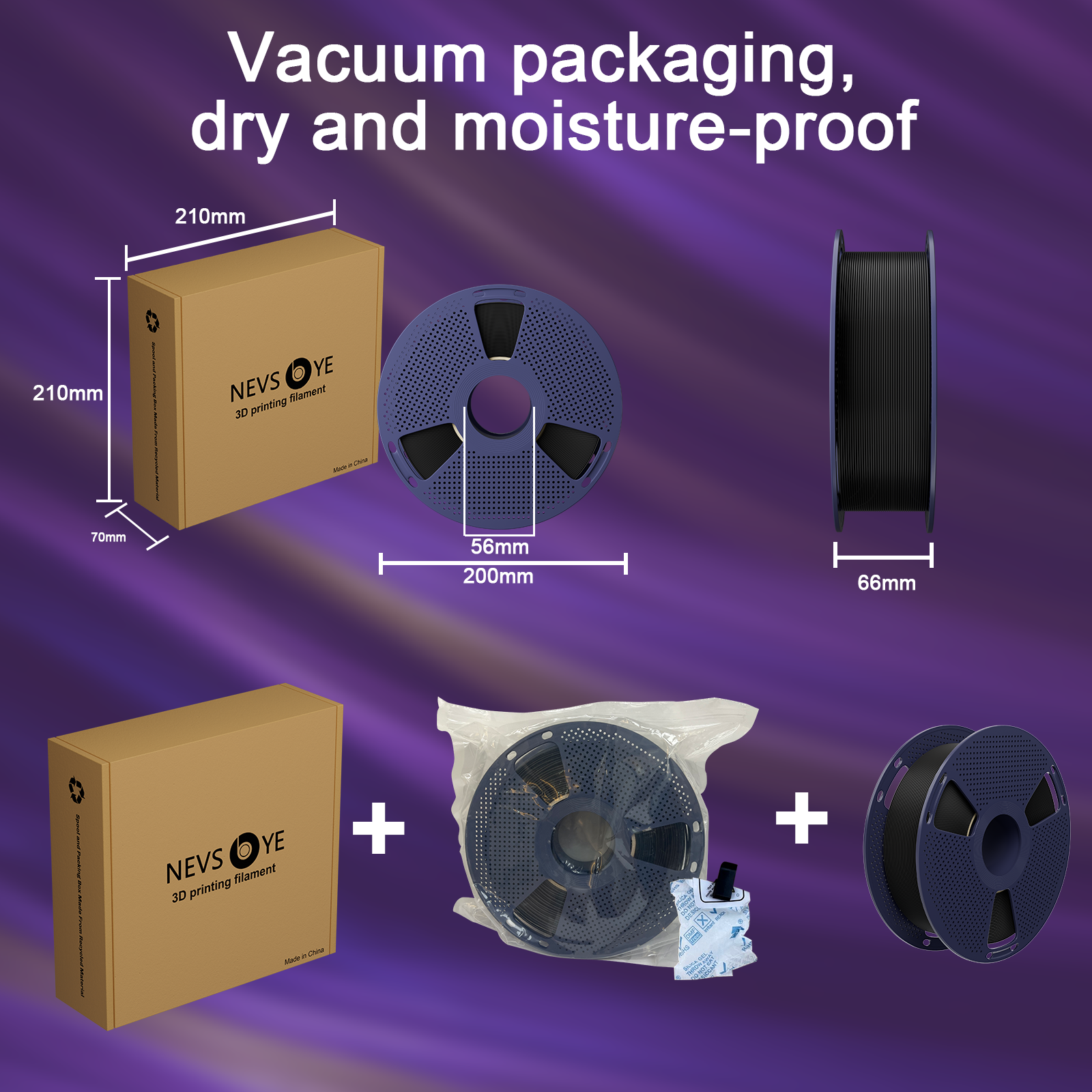

| Packing Size | 210x210x70mm | |

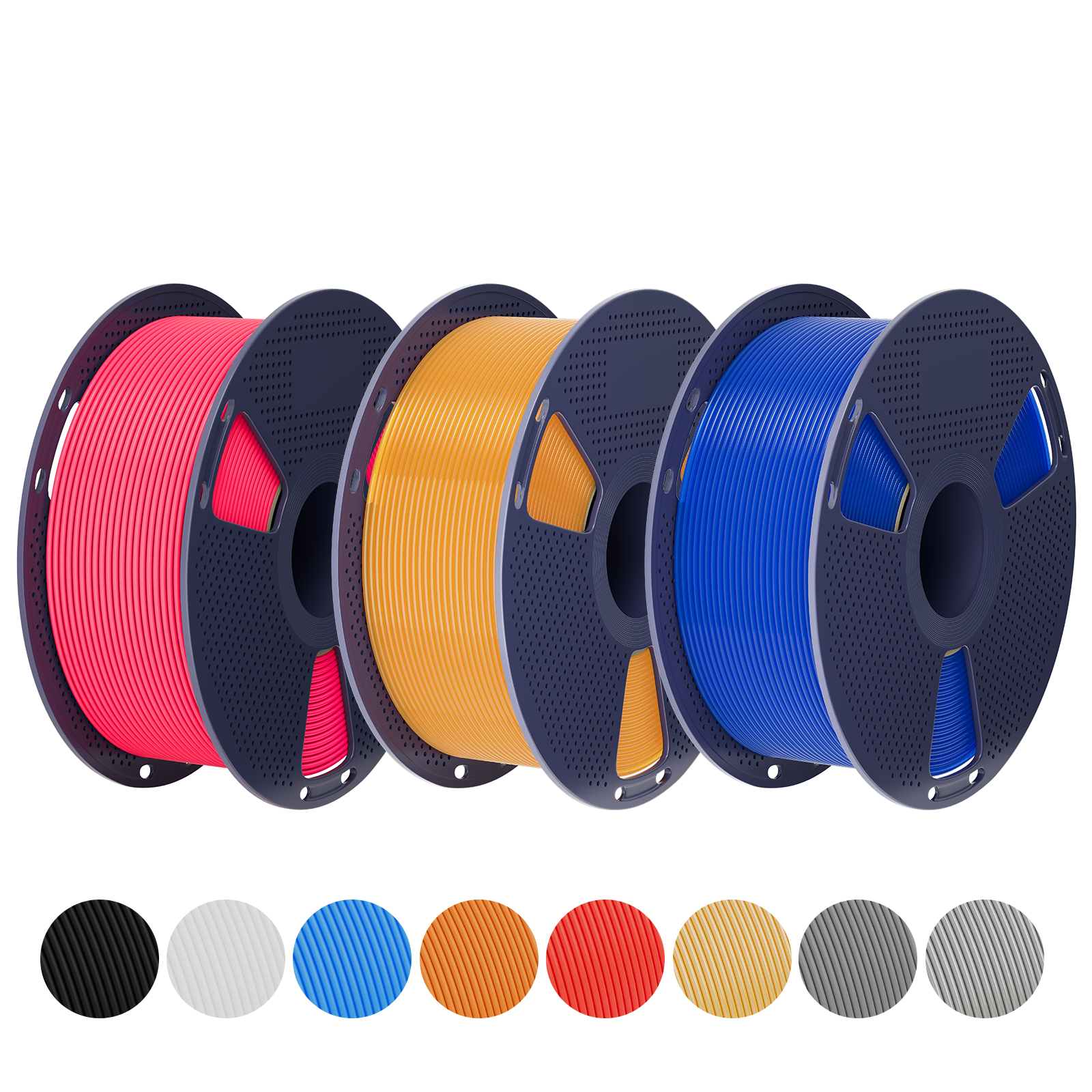

Compare Color
